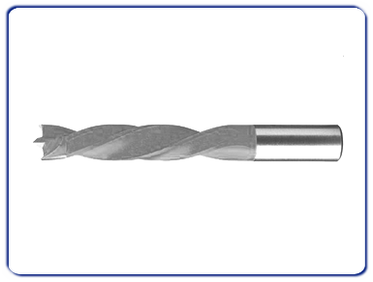

Article 0715 Spiral mortising bits to drill
Technical specifications:
Spiral mortise bit with two HSS sspiral cutting edges, haed grinded.
Tool is constructed of steel with a high chromium content (G + Mo + V) or HC reported.
Suitable for softwood and hardwood.
Application:
Mortising machine.

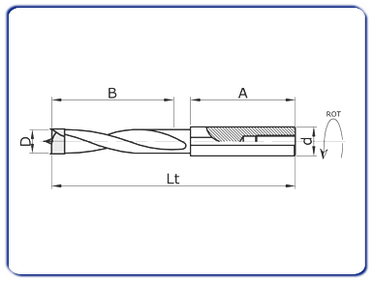

Diameter (D) |
Lenght (Lt) |
Shank (d x A) |
Cutting edges (Z) |
6 |
110 |
13/16 x 50 |
2 |
7 |
110 |
13/16 x 50 |
2 |
8 |
110 |
13/16 x 50 |
2 |
9 |
110 |
13/16 x 50 |
2 |
10 |
110 |
13/16 x 50 |
2 |
11 |
110 |
13/16 x 50 |
2 |
12 |
110 |
13/16 x 50 |
2 |
13 |
110 |
13/16 x 50 |
2 |
14 |
110 |
13/16 x 50 |
2 |
15 |
110 |
13/16 x 50 |
2 |
16 |
110 |
13/16 x 50 |
2 |
18 |
110 |
13/16 x 50 |
2 |
20 |
110 |
13/16 x 50 |
2 |
6 |
140 |
13 x 50 |
2 |
8 |
150 |
13 x 50 |
2 |
10 |
160 |
13 x 50 |
2 |
12 |
170 |
13 x 50 |
2 |
13 |
175 |
13 x 50 |
2 |
14 |
180 |
13 x 50 |
2 |
16 |
190 |
16 x 50 |
2 |
18 |
200 |
16 x 50 |
2 |
20 |
210 |
16 x 50 |
2 |
22 |
220 |
16 x 50 |
2 |
24 |
235 |
16 x 50 |
2 |
25 |
250 |
16 x 50 |
2 |
26 |
250 |
16 x 50 |
2 |
28 |
260 |
16 x 50 |
2 |
30 |
280 |
16 x 50 |
2 |
All measurments are in millimeters (mm). |
