Article 0770 Hinge anuba bits -
Technical specifications:

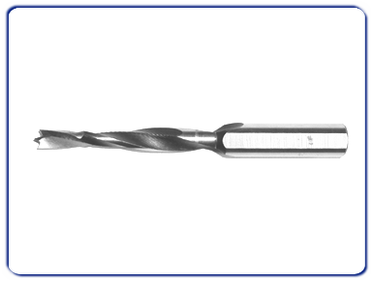

Hinge anuba drill bit with two front cutting edges, one spur for precision drilling.
Tool is built of synthesized tungsten carbide and other metallic carbides.
Suitable for soft and not glued woods.
Application:
Boring machine, CNC.

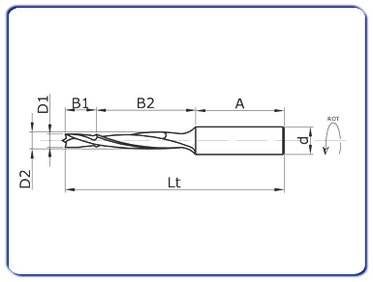

Hinge anuba drill with shelf |
|||||
Diameter 1 (D1) |
Diameter 2 (D2) |
Cutting hight 1 (B1) |
Cutting hight 2 (B2) |
Shank (d x A) |
Cutting edges (Z) |
3,80 |
5,00 |
20 |
40 |
10 x 35 |
2+2 |
4,20 |
5,70 |
20 |
45 |
10 x 35 |
2+2 |
5,20 |
6,50 |
15 |
50 |
10 x 35 |
2+2 |
5,50 |
7,00 |
15 |
55 |
10 x 35 |
2+2 |
6,00 |
7,70 |
15 |
60 |
10 x 35 |
2+2 |
6,60 |
8,20 |
20 |
70 |
10 x 35 |
2+2 |
7,20 |
8,70 |
20 |
80 |
10 x 35 |
2+2 |
Hinge anuba drill with cylindrical shank |
|||||
Diameter 1 (D1) |
Diameter 2 (D2) |
Cutting hight 1 (B1) |
Cutting hight 2 (B2) |
Shank (d x A) |
Cutting edges (Z) |
5,40 |
6,50 |
20 |
50 |
6,50 x 30 |
2+2 |
5,70 |
6,75 |
20 |
65 |
6,75 x 40 |
2+2 |
6,00 |
7,00 |
20 |
50 |
7,00 x 30 |
2+2 |
6,25 |
7,25 |
20/25 |
60/65 |
7,25 x 30/40 |
2+2 |
6,50 |
7,75 |
20/25 |
60/70 |
7,75 x 30/40 |
2+2 |
6,70 |
8,50 |
25 |
60/70 |
8,50 x 30/40 |
2+2 |
All measurments are in millimeters (mm). |
