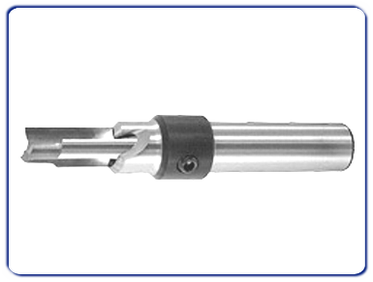

Article 0710 Adjustable mortising bits z3 with countersink
Technical specifications:
Mortise bit with two HSS straight cutting edges, haed and side grinded.
The countersink allows the cleaning of the entrance of the buttonhole from possible chips of wood and at the same time creates a bevel which makes the assembly and provides accommodation for excess glue. Tool is constructed of steel with a high chromium content (G + Mo + V).
Suitable for softwood and hardwood.
Application:
Mortising machine.

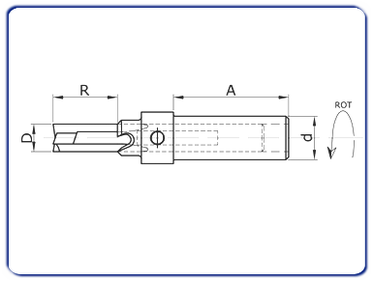

Diameter (D) |
Regulation (R) |
Shank (d x A) |
Cutting edges (Z) |
10 |
25 - |
16 x 50 |
3 + 3 |
12 |
25 - |
16 x 50 |
3 + 3 |
All measurments are in millimeters (mm). |
