PRODUCTS > DIAMOND TOOLS

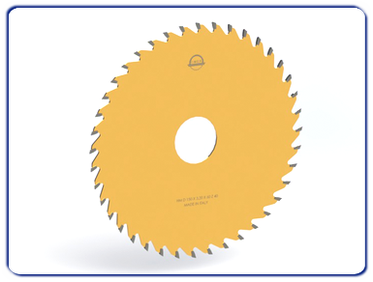

Article 1085 Diamond scoring saw blades for double end tenoners and edge-
Technical specifications:
Circular diamond scoring saw blades coupled with the hooger..
Tool is constructed of steel with a diamond cutting teeth.
Suitable for chipboard, MDF, plywood, laminates and bilaminates.
Application:
Edge banding machine, double end tenoner.

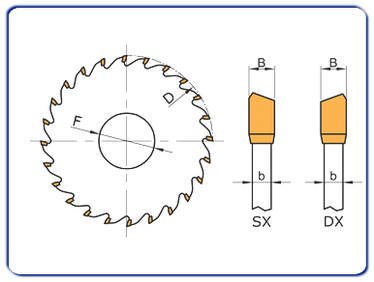

Diameter (D) |
Thickness (B) |
Bore (F) |
Cutting edges (Z) |
150 |
3,20 |
45/55/60 |
24/30/36/40 |
180 |
3,20 |
45/55/60 |
30/36/42/48 |
200 |
3,20 |
45/55/60 |
30/36/48 |
All measurments are in millimeters (mm). |
