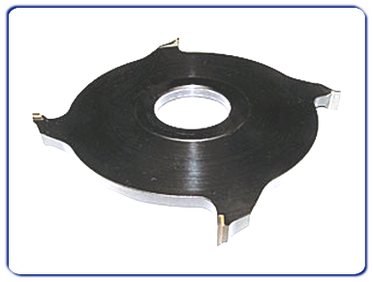

Article 1045 Diamond grooving cutters
Technical specifications:
Plain diamond cutter with sharp straight or angled.
Tool is constructed of steel or HC body with a diamond cutter edge.
Suitable for abrasive, hard, soft and glued woods, MDF, plywood and chipboard.
Application:
Moulder, spindle moulder, shaper, tenoner.

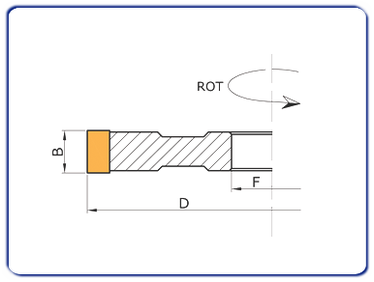

Diameter (D) |
Cutting hight (B) |
Bore (F) |
Cutting edges (Z) |
100/110/120/140/150/180/200 |
4 |
30/40/50 |
4+8 /8/16/24/32/40/48 |
100/110/120/140/150/180/200 |
5 |
30/40/50 |
4+8 /8/16/24/32/40/48 |
100/110/120/140/150/180/200 |
6 |
30/40/50 |
4+8 /8/16/24/32/40/48 |
100/110/120/140/150/180/200 |
7 |
30/40/50 |
4+8 /8/16/24/32/40/48 |
100/110/120/140/150/180/200 |
8 |
30/40/50 |
4+8 |
100/110/120/140/150/180/200 |
9 |
30/40/50 |
4+8 |
100/110/120/140/150/180/200 |
10 |
30/40/50 |
4+8 |
All measurments are in millimeters (mm). |
