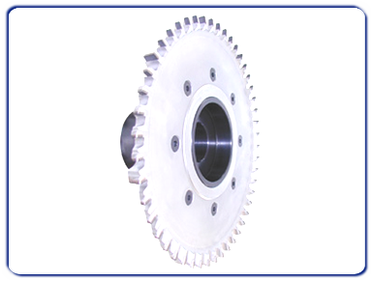

Article 1095 Diamond hogging sets
Technical specifications:
Diamond hogging set with hub for the application to the machine.
The special shape and positioning of the segments allow excellent feeding, ensuring easy chip descharge.
Suitable for solidwood, chipboard, MDF, plywood, laminates and bilaminates.
Application:
Double end tenoner machine.

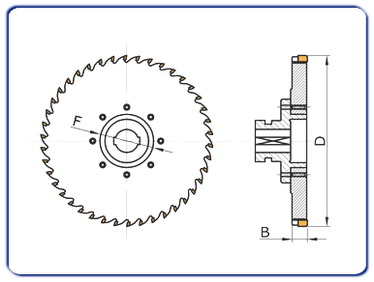

Diameter (D) |
Thickness (B) |
Bore (F) |
Cutting edges (Z) |
220/250 |
10 |
60/80 |
30+6/35+5/36+6 |
220/250 |
10 |
60/80 |
48+6/54+6 |
220/250 |
20 |
60/80 |
30+6+6/36+3+3 |
220/250 |
20 |
60/80 |
36+6+6/48+6+6 |
All measurments are in millimeters (mm). |
