Article 1026 Diamond profiled inserts -
Technical specifications:

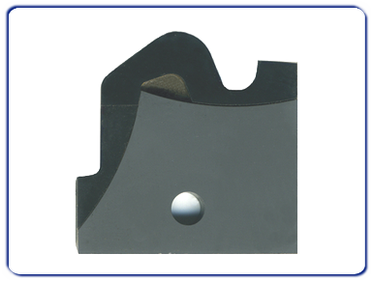

HC (integral tungsten carbide) profiled inserts with 1cutting diamond edge, 2 mm thickness.
It can be used in place of a normal HC profiled insert 2 mm thick, with no changes required. Thanks for carry-
Suitable for softwood, hardwood, glued-
Parts for mechanical locking tools.

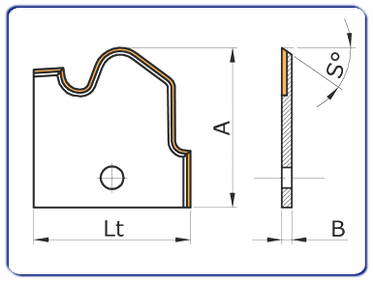

Lenght (Lt) |
Height (B) |
Thickness (B/b) |
Cutting edges (Z) |
15 |
15/20/25/30 |
2 |
1 |
20 |
20/25/30/35 |
2 |
1 |
25 |
20/25/30/35 |
2 |
1 |
30 |
20/25/30/35/40 |
2 |
1 |
40 |
20/25/30/35/40 |
2 |
1 |
50 |
20/25/30/35/40 |
2 |
1 |
60 |
20/25/30/35/40 |
2 |
1 |
80 |
20/25/30/35/40 |
2 |
1 |
All measurments are in millimeters (mm). |
