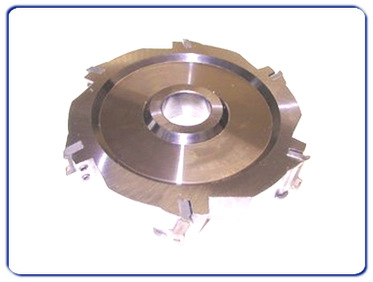

Article 1040 Diamond profiled insert cutters
Technical specifications:

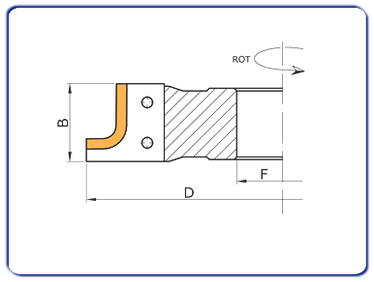

Profiled insert cutter according to technical drawing.
It use a normal HC profiled insert 2 mm thick. Thanks for carry-
Suitable for abrasive, hardwood, glued-
Moulder, shaper, spindle moulder, squaring, tenoning machine, cnc machining center for windows.
Diameter (D) |
Cutting hight (B) |
Bore (F) |
Cutting edges (Z) |
80 |
10/20/30/40 |
30/35 |
2/3/4 |
100 |
10/20/30/40 |
30/35/40 |
2/3/4 |
120 |
10/20/30/40 |
30/35/40/50 |
2/3/4 |
140 |
10/20/30/40 |
30/35/40/50 |
2/3/4 |
160 |
10/20/30/40 |
30/35/40/50 |
2/3/4 |
180 |
10/20/30/40 |
30/35/40/50 |
2/3/4 |
180 |
10/20/30/40 |
30/35/40/50 |
2/3/4 |
200 |
10/20/30/40 |
30/35/40/50 |
2/3/4/6 |
250 |
10/20/30/40 |
30/35/40/50 |
2/3/4/6 |
300 |
10/20/30/40 |
30/35/40/50 |
2/3/4/6 |
All measurments are in millimeters (mm). |
