PRODUCTS > DIAMOND TOOLS

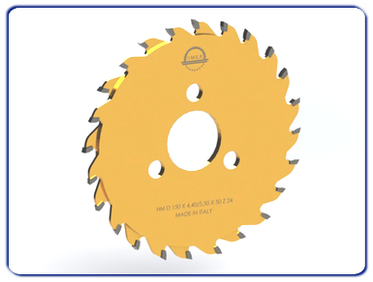

Article 1076 Adjustable diamond panel sizing scoring saw blades
Technical specifications:
Adjustable scooring saw blades used on the machines cutting coupled with panel sizing saw.
Tool is constructed of steel with a diamond cutting teeth.
Suitable for panels, plywood, chipboard, plywood, MDF, laminates, bilaminates.
Application:
Panel saw machine.

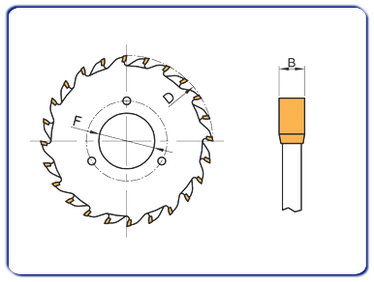

Diameter (D) |
Thickness (B) |
Bore (F) |
Cutting edges (Z) |
80 |
2,80- |
20 |
10+10/12+12 |
90 |
2,80- |
20 |
12+12 |
100 |
2,80- |
20/22 |
12+12 |
110 |
2,80- |
20 |
12+12 |
120 |
2,80- |
20/22/50 |
12+12 |
125 |
2,80- |
20/22 |
12+12/20+20 |
180 |
2,80- |
20/45 |
18+18/20+20 |
200 |
2,80- |
20/45 |
30+30 |
250 |
4,20- |
30/50 |
36+36 |
Design of saw's bore for various panel sizing machine |
All measurments are in millimeters (mm). |
