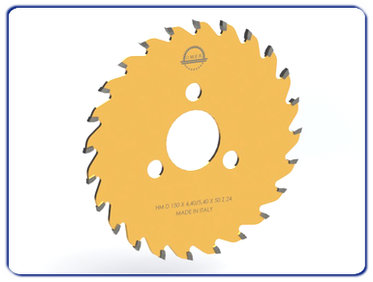

Article 1075 Diamond panel sizing scoring saw blades

Technical specifications:
Scooring saw blades used on the machines cutting coupled with panel sizing saw.
Tool is constructed of steel with a diamond cutting teeth.
Suitable for panels, plywood, chipboard, plywood, MDF, laminates, bilaminates.

Application:
Panel saw machine.

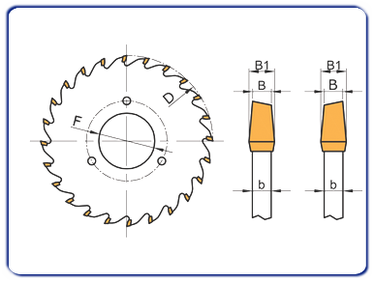

Diameter (D)	Thickness (B)	Bore (F)	Cutting edges (Z)
80	3,10-4,30	20/22	12
90	3,10-4,30	20/22	12
100	3,10-4,30	20/22	20
110	4,60-5,70	20	20
115	3,10-4,30	20/22	24
120	3,10-4,30	20/22	24
125	3,10-4,30/3,40-4,60/4,30-5,50	20/22/45	24
127	4,40-5,60	20	24
150	3,40-4,60/4,30-5,50	30/45	24/30/36
160	4,30-5,50/4,60-5,70	45/55	24/30/36
180	4,30-5,50/4,70-5,90/5,10-6,30	30/45/50/55	30/36
200	4,30-5,50/4,70-5,90/5,10-6,30/5,70-6,90	20/30/45/65/80	36
215	4,30-5,50/4,60-5,60	50	42
280	4,30-5,50	55	40
300	4,30-5,50	50/65/80	48/72
320	4,60-5,50	50/35/80	48/72

Design of saw's bore
Panel sizing machine
Gabbiani, SCM		Gabbiani	Giben		Schreer	Selco
design bore 1	design bore 2	design bore 3	design bore 4	design bore 5	design bore 6	design bore 7	design bore 8

All measurments are in millimeters (mm).
