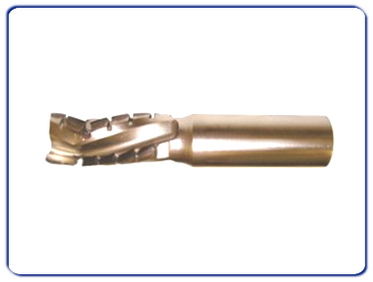

Article 1015 Diamond router helical bits
Technical specifications:
Router diamond bits with cylindrical shank for drilling and edging operations.
Tool is constructed of steel or HC body with a diamond cutter edge in two, three or four divisions.
Suitable for solidwood, esotic wood, chipboard, MDF, plywood, laminates and bilaminates.
Application:
Router.

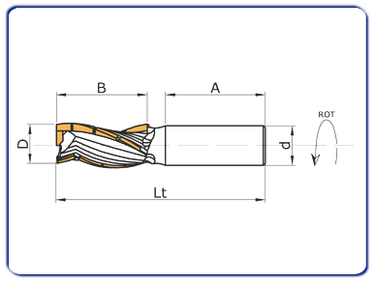

Diameter (D) |
Cutting hight (B) |
Shank (d x A) |
Cutting edges (Z) |
12 |
27 |
Ø12 x 50 |
2+2 |
14 |
35/40 |
Ø14 x 50 |
2+2 |
16 |
20/2734/40/45/47/54 |
Ø20 x 50 |
3+3/4+4 |
18 |
20/27/34/40/45/47/54 |
Ø20 x 50/Ø25 x 50 |
3+3/4+4 |
20 |
20/25/27/30/34/40/45/47/54/65 |
Ø20 x 50/Ø25 x 50 |
3+3/4+4 |
22 |
24/35 |
Ø20 x 50/Ø25 x 50 |
3+3 |
25 |
25/30/35/40/45/50/55/60/65 |
Ø20 x 50/Ø25 x 50 |
4+4 |
30 |
20/25/30/35 |
Ø20 x 50/Ø25 x 50 |
4+4 |
All measurments are in millimeters (mm). |
