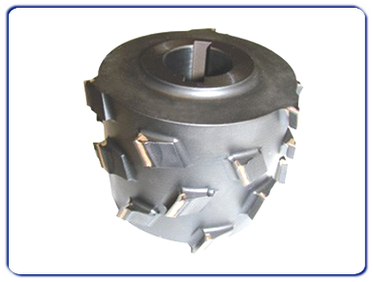

Article 1050 Diamond jointing cutters
Technical specifications:
Jointer cutter for finishing of panels edged for edging machines.
Tool is constructed of steel with a high chromium content with the cutting edges in diamond inclined axially towards the center of the panel.
Suitable for abrasive, hard, glued woods, lamination panels, plywood and chipboard..
Application:
Edge banding machine, double-

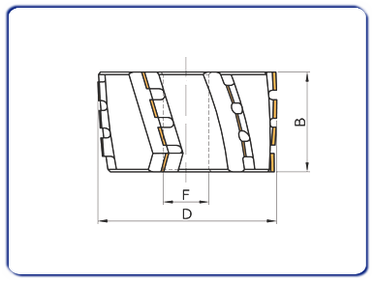

Diameter (D) |
Cutting hight (B) |
Bore (F) |
Cutting edges (Z) |
70/80/100/125/150 |
32 |
30/35/40 + kw |
3+3+3+3 |
70/80/100/125/150 |
40 |
30/35/40 + kw |
3+3+3+3+3 |
70/80/100/125/150 |
48 |
30/35/40 + kw |
3+3+3+3+3+3 |
70/80/100/125/150 |
56 |
30/35/40 + kw |
3+3+3+3+3+3+3 |
70/80/100/125/150 |
64 |
30/35/40 + kw |
3+3+3+3+3+3+3+3 |
All measurments are in millimeters (mm). |
