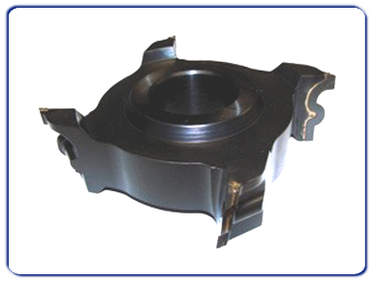

Article 1035 Diamond profiled cutters
Technical specifications:

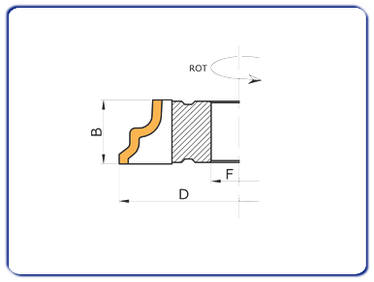

Profiled cutter according to technical drawing.
Tool is constructed of steel or HC body with a diamond cutter edge.
Suitable for abrasive, hard, soft and glued woods, MDF, plywood and chipboard.
Application:
Moulder, shaper, spindle moulder.
Diameter (D) |
Cutting hight (B) |
Bore (F) |
Cutting edges (Z) |
60 |
10/20/30/40/50/60/70/80/90/100 |
30 |
2/3/4 |
80 |
10/20/30/40/50/60/70/80/90/100 |
30/35 |
2/3/4 |
100 |
10/20/30/40/50/60/70/80/90/100 |
30/35/40 |
2/3/4/6 |
120 |
10/20/30/40/50/60/70/80/90/100 |
30/35/40/50 |
2/3/4/6 |
140 |
10/20/30/40/50/60/70/80/90/100 |
30/35/40/50 |
2/3/4/6 |
160 |
10/20/30/40/50/60/70/80/90/100 |
30/35/40/50 |
2/3/4/6 |
180 |
10/20/30/40/50/60/70/80/90/100 |
30/35/40/50 |
2/3/4/6 |
200 |
10/20/30/40/50/60/70/80/90/100 |
30/35/40/50 |
2/3/4/6 |
250 |
10/20/30/40/50/60/70/80/90/100 |
30/35/40/50 |
2/3/4/6 |
300 |
10/20/30/40/50/60/70/80/90/100 |
30/35/40/50 |
2/3/4/6 |
All measurments are in millimeters (mm). |
