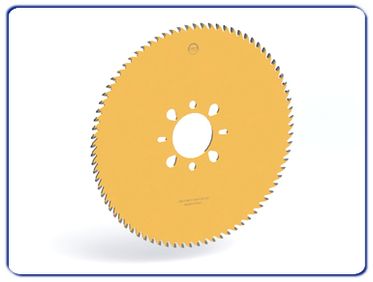

Article 1080 Diamond panel sizing saw blades

Technical specifications:
Panel sizing saw blades with alternated or flat/trapezoidal teeth, used on the machines cutting coupled with scoring blade.
Tool is constructed of steel with a diamond cutting teeth.
Suitable for chipboard, MDF, plywood, laminates and bilaminates.

Application:
Panel saw machine.

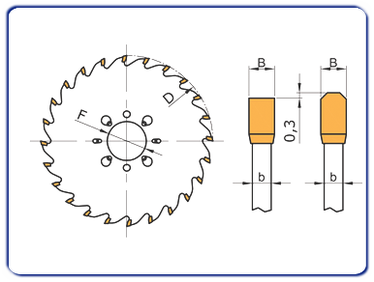

Diameter (D)	Thickness(B)	Bore (F)	Cutting edges (Z)
250	4,40	30/65/80	48/72
300	4,40	30/65/80	48/60/72
320	4,40	65	60
350	4,40	30/60/75/80	40/54/72/84
355	4,40	30/60/75/80	48/54/72
360	4,40/4,60	65/70	48/54/72
380	4,40	30/50/60/75/80	54/72
400	4,40/4,60/5,20	30/60/75/80	48/60/72/84
420	4,40	80	60/72
430	4,60	30/60/75/80	60/72/96
450	4,40/4,60/4,80	30/80	54/72/84
470	4,40/4,60	75	48/72
480	4,40/4,60/4,80/5,20	80	48/72
500	4,80	30/60/80	60/72/84
550	5,20	80	72
565	5,20/5,60	100	48/52/72
570	5,20	100	48/54/84
600	5,80	60	60

Design of saw's bore
Paanel sizing machine
Gabbiani, Selco	Giben, Euromac	Panhans, SCM, Scheer, Schelling	Holzma	Selco	Biesse
design bore 1	design bore 2	design bore 3	design bore 4	design bore 5	design bore 6

All measurments are in millimeters (mm).
