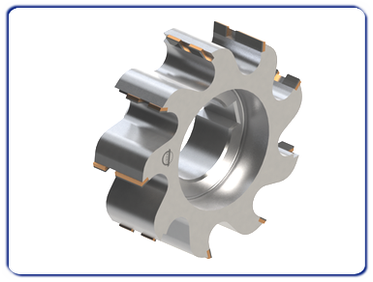

Article 1055 Diamond plain post-forming cutters

Technical specifications:
Plain cutter with straight cutting edge for the removal of part of laminate on top of the panel in the process of post-forming.
Tool is constructed of steel with a high chromium content with the cutting edges in diamond inclined axially towards the center of the panel.
Suitable for hard, glued woods, lamination panels, MDF, plywood and chipboard..

Application:
Post-forming plants.

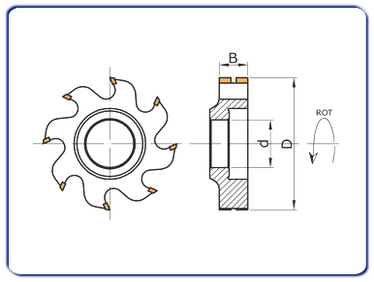

Diameter (D)

Cutting hight (B)

Bore (F)

Cutting edges (Z)

70

20

16 + 2kw

15+3

70

25

16+2kw/20+2kw/HSK25

9+3/18+3

80

25

20 + 2kw

9+3

All measurments are in millimeters (mm).
