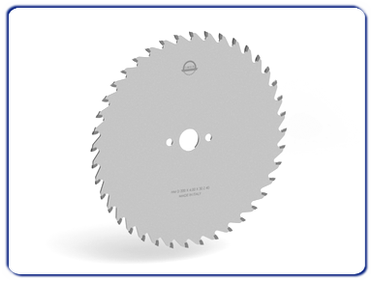

Article 0806 Special circular saw blades

Technical specifications:
Saw blades for crosscutting along and across grain with good finish and excellent chip removal.
Tool is constructed of steel with a HM reported cutting teeth.
Suitable for softwood, hardwood, exotic wood, plywood.

Application:
Table saws and miter saws.

Diameter (D)	Thichness (B)	Angle (A°)	Boreo (F)	Cutting edges (Z)
120	4,00	12°	20/30/35	30
125	3,20/4,00	10°/12°	20/30/35	24/30/36
140	2,50/3,20/4,00	10°/12°	20/30/35	36/48
150	2,50/3,20/4,00	10°/12°	20/30/35	30/36/48
160	2,50/3,20/4,00	10°/12°	20/30/35	36/48
180	2,50/3,20/4,00	10°/12°	30/35	36/40/56
200	2,50/3,20/4,00	10°/12°	30/32/35	40/48/64
225	3,20	10°	20/30	72
250	2,50/3,20/4,00	10°/12°	30/32/35	48/60/80
275	3,20	10°	20/30/32	84
280	3,20	10°	30	80
300	2,50/3,20/4,00	10°/12°	30/32/35	60/72/96
320	3,20/3,50	10°/12°	20/30/35	72/100
330	3,20/3,50	10°/12°	20/30/35	72/100
350	3,50/4,00	10°/12°	20/30/32/35	72/84/108
370	3,50	10°	30/35	108
400	3,80	10°/12°	30/35	80/96/120
450	4,00/4,20	10°/12°	30/35	108/120
500	4,20	12°	30/35	120

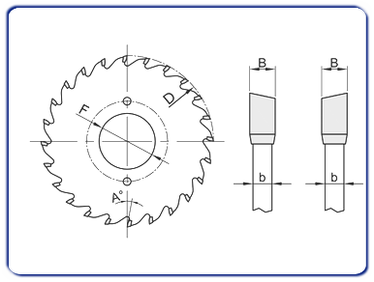

Design of saw's bore

design bore 1

All measurments are in millimeters (mm).
