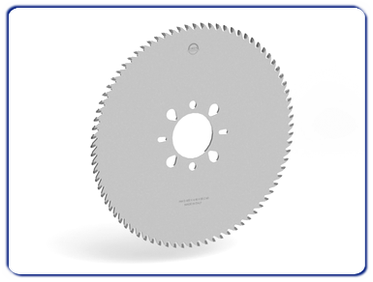

Article 0830 Panel sizing saw blades with flat/trapezoidal teeth

Technical specifications:
Panel sizing saw blades with flat/trapezoidal teeth, used on the machines cutting coupled with scoring blade.
Tool is constructed of steel with a HM reported cutting teeth.
Suitable for panels, plywood, chipboard, plywood, MDF, laminates, bilaminates.

Application:
Panel saw machine.

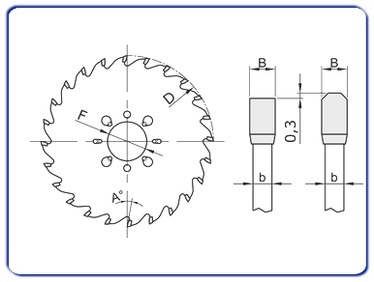

Diameter (D)	Thichness (B)	Angle (A°)	Bore (F)	Cutting edges (Z)
250	4,40	15°	30	60
300	4,40	15°	30/35	48/60/72
350	4,40/4,60	15°	30/75/80	36/48/54/72/84/108
355	4,40	15°	30/75/80	72
360	4,40	15°	30/75/80	72
370	4,40/4,60	15°	30/75/80	72
380	4,60/4,80	15°	60/80	60/72/84
400	4,40/4,60	15°	30/75/80	36/48/60/72
410	4,40	15°	75/80	40/60
420	4,40	15°	30/75/80	54/72
430	4,60	15°	75/80	60
450	4,60/4,80	15°	40/50/60/75/80	84/60/72
470	4,60	15°	50/75	60
500	4,60	15°	80	40/60/80
565	5,20	15°	100	48

Design of saw's bore
Panel sizing machine
Gabbiani, Selco	Giben, Euromac	Panhans, SCM, Scheer, Schelling	Holzma	Selco	Biesse
design bore 1	design bore 2	design bore 3	design bore 4	design bore 5	design bore 6

All measurments are in millimeters (mm).
