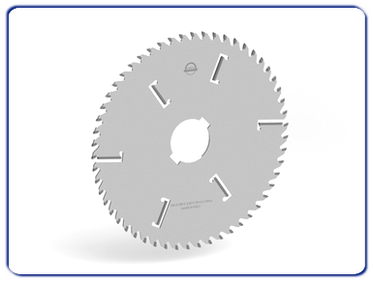

Article 0825 Multiripping saw blade with rakers
Technical specifications:
Saw blades for crosscutting along grain with better finish and precision in the cut.
Tool is constructed of steel with a HM reported cutting teeth with rakers used to keep the cut off and avoid rubbing the wood on the body of the blade..
Recommended for the wood without falling knots.
Suitable for wet natural wood.
Application:
Multi-
Diameter (D) |
Thichness (B) |
Angle (A°) |
Bore (F) |
Cutting edges (Z) |
180 |
2,00/2,20/2,50/3,20 |
18°/20° |
35/40 |
18+2/20+2 |
200 |
2,20/2,50/2,80/3,20 |
18°/20° |
30/35/40 |
20+2/24+4 |
225 |
2,50/3,20 |
20° |
35/60/70/80 + kw |
20+2 |
250 |
2,00/2,20/2,50/3,20/4,20 |
18°/20° |
30/35/60/70/80 + kw |
20+2/20+4/24+2/30+2 |
280 |
2,50/3,20/4,20 |
20° |
35/60/70/80 + kw |
20+4/24+4 |
300 |
2,50/2,80/3,20/3,50/3,80/4,20 |
20° |
30/50/60/70/80 + kw |
16+4/18+2/18+4/20+4/24+4 |
320 |
3,20/3,50 |
20° |
35/60/70/80 + kw |
24+4 |
350 |
3,00/3,50/3,80/4,20 |
18°/20° |
30/60/70/80/100 + kw |
18+4/24+4/24+6/28+4/28+6/30+6 |
380 |
4,00 |
20° |
70/80/100 + kw |
28+6 |
400 |
4,00/4,20 |
18°/20° |
30/70/80/100 + kw |
22+6/28+6/34+6 |
450 |
4,50 |
20° |
70/80 + kw |
36+6 |

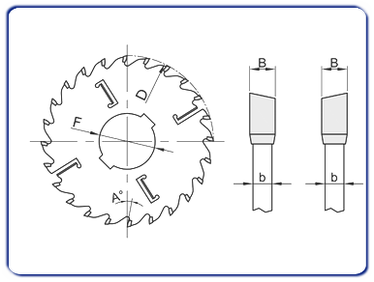

Design of saw's bore |
All measurments are in millimeters (mm). |
