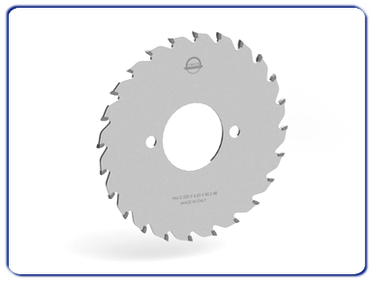

Article 0845 Panel sizing scoring saw blades for postforming
Technical specifications:
Scooring postformed saw blades with alternated teeth, used on the machines cutting coupled with panel sizing saw.
Tool is constructed of steel with a HM reported cutting teeth.
Suitable for panels, laminates, bilaminates.
Application:
Panel sizing saw machine with postforming device.

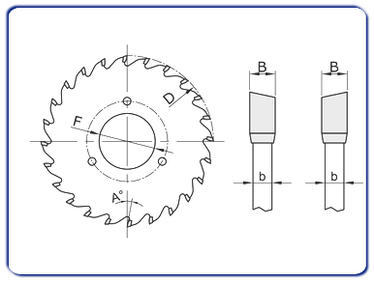

Diameter (D) |
Thichness (B) |
Angle (A°) |
Bore (F) |
Cutting edges (Z) |
180 |
4,55/5,20 |
10° |
30/50/55 |
44 |
200 |
5,00/6,00 |
10° |
45 |
64 |
220 |
5,00/6,00 |
10° |
45 |
64 |
250 |
4,55 |
10° |
30/50/60 |
48 |
280 |
4,55 |
10° |
45 |
84 |
300 |
4,55/5,20 |
10° |
50/65/80 |
72 |
340 |
5,00/6,00 |
10° |
45 |
108 |
Design of saw's bore |
|||||
Panel sizing machine |
|||||
Gabbiani, SCM |
Giben |
Selco |
Scheer |
||
All measurments are in millimeters (mm). |
