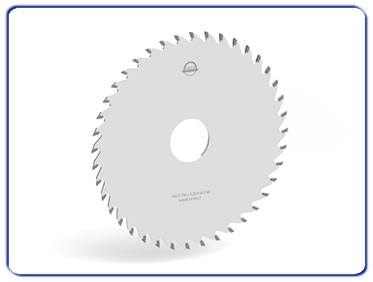

Article 0861 Scoring saw blades for double end tenoners and edge-
Technical specifications:
Circular Hm reported scoring saw blades.
Tool is constructed of steel with a HM reported cutting teeth.
Suitable for chipboard, MDF, plywood, laminates and bilaminates.
Application:
Edge banding machine, double end tenoner.

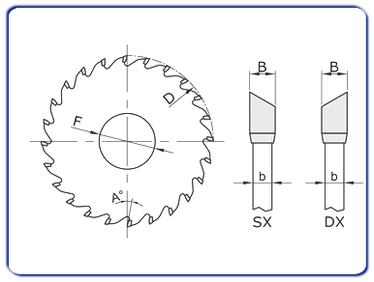

Diameter (D) |
Thichness (B) |
Angle (A°) |
Bore (F) |
Cutting edges (Z) |
80 |
3,30 |
10° |
20 |
18 |
100 |
2,60 / 3,20 / 3,30 |
10° |
20/22/30 |
20 |
105 |
3,30 |
10° |
20 |
20 |
110 |
3,30 |
10° |
20 |
18 |
115 |
2,60 / 3,20 |
10° |
20/30 |
24 |
120 |
3,20 / 3,30 |
10° |
20 |
20/24/30 |
125 |
3,20 / 3,30 |
10° |
20/30 |
20/30 |
140 |
3,30 |
10° |
30 |
30 |
150 |
3,20 |
10° |
30/55/60 |
36/48 |
160 |
3,20 |
10° |
30 |
36 |
170 |
3,20 / 3,30 |
10° |
30 |
36 |
180 |
3,20 |
10°/12°/15° |
30/50/55/65 |
36/48/56 |
200 |
3,20 |
10° |
30/60 |
48 |
All measurments are in millimeters (mm). |
