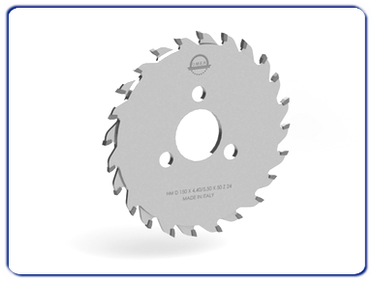

Article 0841 Adjustable panel sizing scoring saw blades
Technical specifications:
Adjustable scooring saw blades with alternated teeth, used on the machines cutting coupled with panel sizing saw.
Tool is constructed of steel with a HM reported cutting teeth.
Suitable for panels, plywood, chipboard, plywood, MDF, laminates, bilaminates.
Application:
Panel saw machine.
Diameter (D) |
Thichness (B) |
Angle (A°) |
Bore (F) |
Cutting edges (Z) |
80 |
2,80- |
12° |
20 |
10+10 |
100 |
2,80- |
12° |
20/22 |
10+10/12+12 |
120 |
2,80- |
12° |
20/22/50 |
12+12 |
125 |
2,80- |
12° |
20/22/50 |
12+12/20+20 |
130 |
2,80- |
12° |
20/22 |
12+12 |
150 |
3,50- |
12° |
20/30 |
12+12/18+18 |
160 |
4,40- |
12° |
20/30 |
18+18 |
180 |
4,20- |
12° |
20 |
18+18/24+24 |
200 |
3,20- |
12° |
20 |
30+30 |
220 |
4,20- |
12° |
20 |
30+30 |
250 |
4,20- |
12° |
30/50 |
32+32 |
300 |
4,20- |
12° |
50 |
32+32 |
320 |
4,40- |
12° |
45/50 |
32+32 |
340 |
4,40- |
12° |
45/50 |
32+32 |

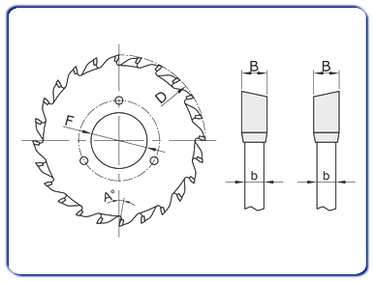

Design of saw's bore |
All measurments are in millimeters (mm). |
