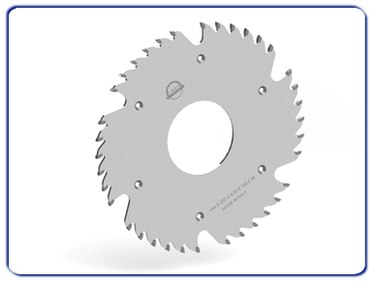

Article 0855 Circular saw blades for hogging sets
Technical specifications:
Saw blades for squaring and trimming of panels on single or double end-
The locking holes and the hollows are made are made so that these saw blades are interchangeable on hoggers.
Tool is constructed of steel with a HM reported cutting teeth.
Suitable for chipboard, MDF, plywood, laminates and bilaminates.
Single or double end tenoner machine.
Parts for mechanical locking tools (Article 0850).

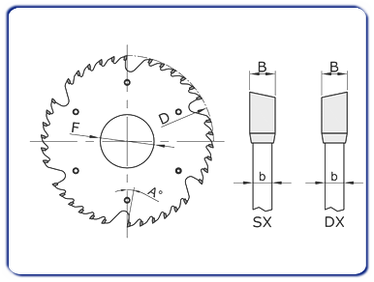

Diameter (D) |
Thichness (B) |
Angle (A°) |
Bore (F) |
Cutting edges (Z) |
200 |
4,10 |
12° |
80 |
44/48/60 |
205 |
4,10 |
10°/12° |
80 |
44/46/48/58/60 |
250 |
4,10 |
7°/12° |
80/100/130 |
40/54/56/60/72/78/80 |
250 |
4,20 |
10° |
130 |
72 |
255 |
4,10 |
10°/12° |
80/100/130 |
40/54/56/60/72/78/80 |
300 |
4,10 |
12° |
80/130/140/155 |
48/72/96 |
350 |
4,10 |
12° |
155/170 |
54/84 |
Design of saw's bore |
||||
BSP |
Leuco |
Witox |
Freud |
|
All measurments are in millimeters (mm). |
