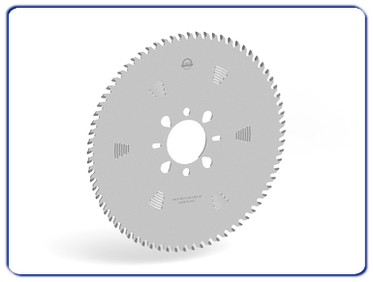

Article 0835 Silenced panel sizing saw blades

Technical specifications:
Panel silenced sizing saw blades with alternated or flat/trapezoidal teeth, used on the machines cutting coupled with scoring saw blade.
Tool is constructed of steel with a HM reported cutting teeth.
The blades have the cuts filled with the sound absorbing material, for reducing the noise emission of the same.
Panel silenced sizing saw blades with alternated teeth suitable for softwood, hardwood, exotic wood, plywood.
Panel silenced sizing saw blades with flat/trapezoidal teeth suitable for panels, plywood, chipboard, plywood, MDF, laminates, bilaminates.

Application:
Panel saw machine.

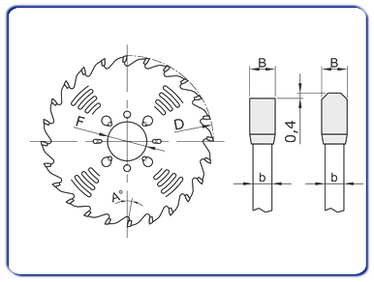

Diameter (D)

Thichness (B)

Angle (A°)

Bore (F)

Cutting edges (Z)

300

4,40

16°

30/75/80

60/72

350

4,40

16°

30/75/80

54/72

400

4,40

16°

30/75/80

60/72

450

4,40/4,60

16°

35/50/75/80

54/72

500

4,40/4,60

16°

35/80

60

Design of saw's bore

Panel sizing machine

Gabbiani, Selco

Giben, Euromac

Panhans, SCM,
Scheer, Schelling

Holzma

Selco

Biesse

design bore 1

design bore 2

design bore 3

design bore 4

design bore 5

design bore 6

All measurments are in millimeters (mm).
