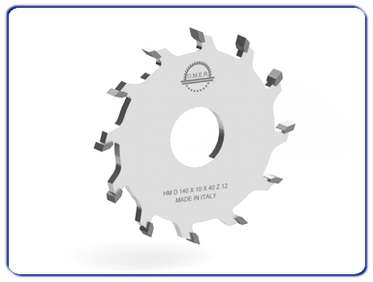

Article 0870 Grooving saw blades
Technical specifications:
Circular Hm reported grooving saw blade with positive hook angle, with the possibility of coupling with other blades of the same diameter to obtain greater thicknesses.
Tool is constructed of steel with a HM reported cutting teeth.
Suitable for softwood, hardwood, exotic wood, plywood.
Application:
Spindle moulder, CNC machine.

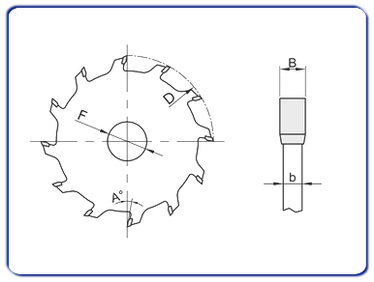

Diameter (D) |
Thichness (B) |
Angle (A°) |
Bore (F) |
Cutting edges (Z) |
100 |
4,00 / 5,00 / 6,00 |
15° |
20 |
8 |
120 |
1,60/2,00/3,00/3,50/4,00/5,00/5,50/6,00 |
12°/15° |
30/35/40 |
12/24 |
120 |
7,00/8,00/9,00/10,00 |
12° |
30/35/40 |
12 |
125 |
1,50 / 1,80 / 2,00 / 2,50 / 3,00 / 4,00 / 5,00 / 6,00 |
15° |
30/35/40 |
12 |
140 |
1,60/2,00/3,00/3,50/4,00/5,00/5,50/6,00 |
12°/15° |
30/35/40 |
12/24 |
140 |
7,00/8,00/9,00/10,00 |
12° |
30/35/40 |
12/24 |
150 |
1,50/1,60/1,80/2,00/2,50/3,00/3,50/4,00/4,50 |
12°/15° |
30/35/40 |
12/18 |
150 |
5,00/5,50/6,00/7,00/8,00/9,00/10,00 |
12° |
30/35/40 |
12/24 |
160 |
1,60/2,00/3,00/3,50/4,00/5,00/5,50/6,00/7,00/8,00/9,00/10,00 |
12° |
30/35/40 |
24 |
180 |
1,60/2,00/3,00/3,50/4,00/5,00/5,50/6,00/7,00/8,00/9,00/10,00 |
12°/15° |
30/35/40 |
18/24 |
200 |
1,60/2,00/3,00/3,50/4,00/5,00/5,50/6,00/7,00/8,00/9,00/10,00 |
12° |
30/35/40 |
24 |
All measurments are in millimeters (mm). |
