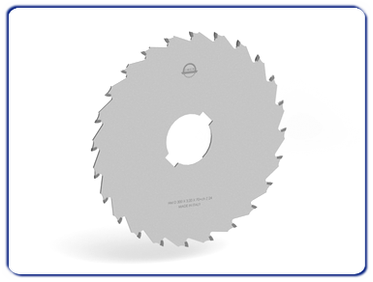

Article 0821 Multiripping saw blade with anti-
Technical specifications:
Saw blades for crosscutting along and across grain with good finish and excellent chip removal.
Tool is constructed of steel with a HM reported cutting teeth.
Recommended for the wood with falling knots.
Suitable for dry softwood, hardwood, exotic wood.
Application:
Multi-
Diameter (D) |
Thichness (B) |
Angle (A°) |
Bore (F) |
Cutting edges (Z) |
200 |
2,50/3,20 |
20° |
30/35 |
16 + aks |
250 |
2,50/3,20/4,20 |
20° |
30/35/60/70/80 + kw |
20/24 + aks |
280 |
3,20 |
20° |
30/35/60/70/80 + kw |
24 + aks |
300 |
2,50/3,20/4,20 |
20° |
30/35/60/70/80 + kw |
24/28 + aks |
350 |
3,00/3,50/4,20 |
20° |
30/35/70/80 + kw |
28/32 + aks |
400 |
4,00 |
20° |
30/35 |
34 + aks |
450 |
4,50 |
20° |
35/40 |
36 + aks |
500 |
4,50 |
20° |
35/40 |
40 + aks |
550 |
5,00 |
20° |
30 |
48 + aks |

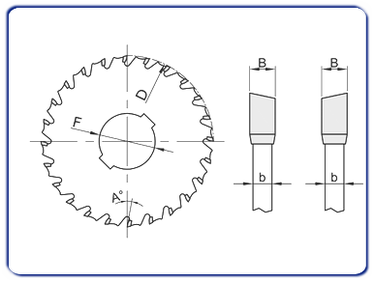

Design of saw's bore |
All measurments are in millimeters (mm). |
