Article 0840 Panel sizing scoring saw blades

Technical specifications:

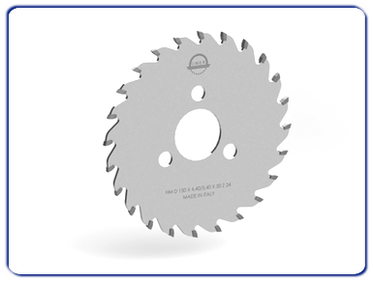

Scooring saw blades with alternated conical teeth, used on the machines cutting coupled with panel sizing saw.
Tool is constructed of steel with a HM reported cutting teeth.
Suitable for panels, plywood, chipboard, plywood, MDF, laminates, bilaminates.

Application:
Panel saw machine.

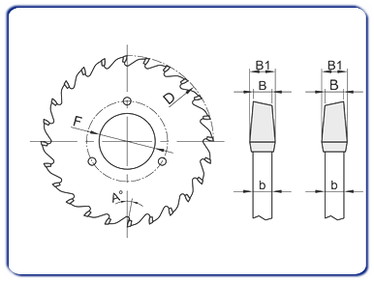

Diameter (D)	Thichness (B-B1)	Angle (A°)	Bore (F)	Cutting edges (Z)
80	3,1-4,3/3,2-4,2	10°	20	12/18
90	3,1-4,3/3,2-4,2	10°	20/30	12/24
100	3,1-4,3/3,2-4,4	10°	20	20
110	3,1-4,3/3,2-4,4	10°	20	24
115	3,1-4,3	10°	20	24
120	3,1-4,3/3,2-4,4/4,4-5,4	10°	20/30	24
120	3,2-4,5/3,4-4,6	10°	20	20/24
125	3,1-4,3/3,2-4,4/4,4-5,4	10°	20/30	24
125	3,4-4,6/4,4-5,5/4,6-5,5	10°	20/45	24
127	3,4-4,6/4,4-5,5/4,4-5,4	10°	20/45	24
140	3,4-4,6/4,4-5,5	10°	30/40/45	24
150	3,2-4,4/4,4-5,4/6,2-7,2	10°	20/30/55	24/36
150	3,1-4,3/3,4-4,6/4,4-5,5	10°	20/30/45	24/36
160	3,4-4,6/4,4-5,4/4,6-5,5	10°	30/40/45/55	36
180	3,2-4,4/4,4-5,4/4,6-5,6	10°	16/20/30/45/50/55	36
180	4,4-5,5/4,8-5,8/6,2-7,2	10°	20/45/50/70	30/36
200	3,2-4,4/4,4-5,4/4,6-5,6	10°	20/30/45/50/65/80	36
200	4,8-5,8/5,0-6,0/5,5-6,5	10°	20/30	36
200	3,4-4,6/4,4-5,5/4,6-5,5	10°	20/30/45/65	36
200	4,8-5,8/5,8-6,8/6,2-7,2	10°	20/30/45/65	36
215	4,4-5,4/4,4-5,5	10°	50	36/42/60
220	5,0-6,0/6,2-7,2	10°	20	36
250	4,4-5,4/4,4-5,5	10°	30/50	40/60
280	4,4-5,4/4,4-5,5	10°	30/55	48
300	4,4-5,6/4,4-5,5/4,6-5,5	10°	50/65/80	48/72
320	4,4-5,5	10°	50/65/80	60/72
350	4,4-5,4	10°	50	48

Design of saw's bore
Panel sizing machine
Gabbiani, SCM		Gabbiani	Giben		Schreer	Selco
design bore 1	design bore 2	design bore 3	design bore 4	design bore 5	design bore 6	design bore 7	design bore 8

All measurments are in millimeters (mm).
