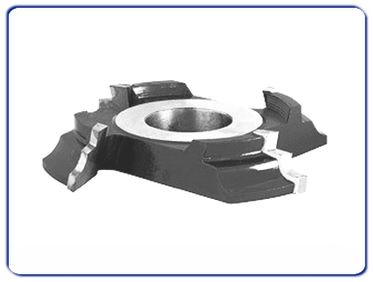

Article 0110 Profiled cutters
Technical specifications:

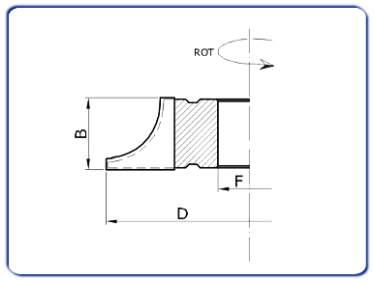

Profiled cutter according to technical drawing.
The tool is made from Hm reported or high speed steel.
Hc execution suitable for abrasive, hard, soft and glued woods, MDF, plywood and chipboard.
Hss execution suitable for soft, hard and non-
Moulder, shaper, spindle moulder.
Diameter (D) |
Cutting hight (B) |
Bore (F) |
Cutting edges (Z) |
60 |
10/20/30/40/50/60/70/80/90/100 |
30 |
2/3/4 |
80 |
10/20/30/40/50/60/70/80/90/100 |
30/35 |
2/3/4 |
100 |
10/20/30/40/50/60/70/80/90/100 |
30/35/40 |
2/3/4/6 |
120 |
10/20/30/40/50/60/70/80/90/100 |
30/35/40 |
2/3/4/6 |
140 |
10/20/30/40/50/60/70/80/90/100 |
30/35/40 |
2/3/4/6 |
160 |
10/20/30/40/50/60/70/80/90/100 |
30/35/40 |
2/3/4/6 |
180 |
10/20/30/40/50/60/70/80/90/100 |
30/35/40 |
2/3/4/6 |
200 |
10/20/30/40/50/60/70/80/90/100 |
30/35/40 |
2/3/4/6 |
250 |
10/20/30/40/50/60/70/80/90/100 |
30/35/40 |
2/3/4/6 |
300 |
10/20/30/40/50/60/70/80/90/100 |
30/35/40 |
2/3/4/6 |
All measurments are in millimeters (mm). |
