PRODUCTS > SHAPED CUTTERS

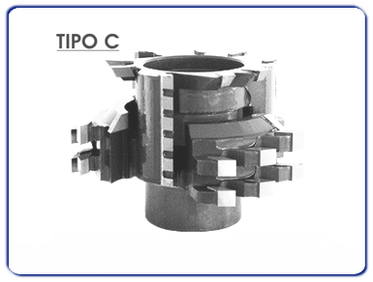

Article 0180 Cutter set for tenoning machine C
Technical specifications:
Cutter group, composed of a hogger indexable z = 9 +3 ° SG45 and a cutter z = 3 +6 ri, which allows adjustment of the plug 10 to 42 mm.
The tool is made of Hm reported.
Suitable for hard, soft and glued woods.
Application:
Double tenoning machine.

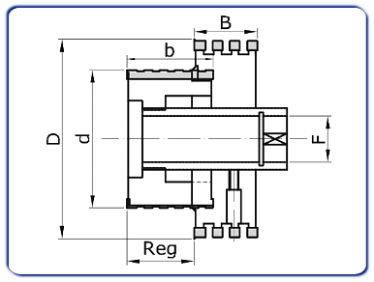

Diameter (D/d) |
Cutting hight (B/b) |
Bore (F) |
Tenon regulation (REG) |
Cutting edges (Z) |
100/70 |
45/30 |
25 |
10 - |
12 ri + 9 sg45° |
All measurments are in millimeters (mm). |
