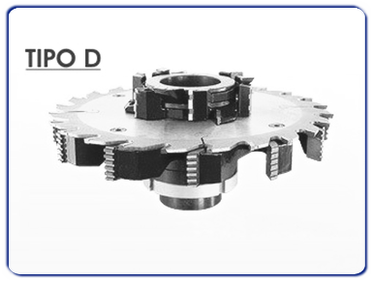

Article 0185 Cutter set for tenoning machine D
Technical specifications:
Cutter group, composed of a hogger, a blade and a cutter adjustable, mounted on bushing, which allows adjustment of the plug 10 to 30 mm (20 to 40 mm).
The tool is made of Hm reported.
Suitable for hard, soft and glued woods.
Application:
Single tenoner machine type: Bacci, Balestrini, Pade, Greda (old models).

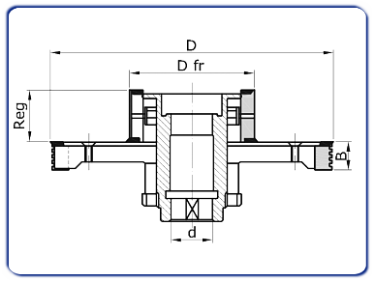

Diameter (D/d) |
Cutting hight (B/b) |
Bore (F) |
Tenon regulation (REG) |
Cutting edges (Z) |
200/95 |
20/15/3,20 |
30 |
15 - |
24 + 12 + 3 |
200/95 |
20/20/3,20 |
30 |
20 - |
24 + 12 + 3 |
All measurments are in millimeters (mm). |
