PRODUCTS > SHAPED CUTTERS

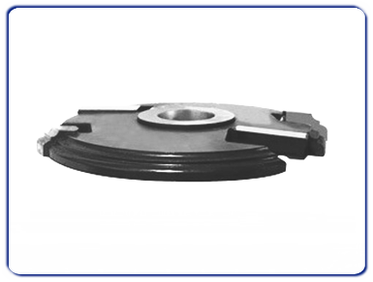

Article 0150 Panel rising cutters
Technical specifications:

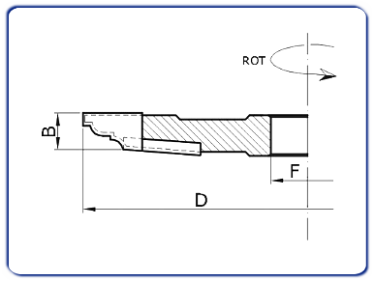

Profiled cutter by according technical drawing.
The tool is made from Hm reported or high speed steel.
Suitable for abrasive, hard, soft and glued woods, MDF, plywood.
Application:
Spindle moulder, tenoner.
Diameter (D) |
Cutting hight (B) |
Bore (F) |
Cutting edges (Z) |
160 |
20/25/30 |
30/35/40/50 |
2 + 2 |
180 |
20/25/30 |
30/35/40/50 |
2 + 2 |
200 |
20/25/30 |
30/35/40/50 |
2 + 2 |
250 |
20/25/30 |
30/35/40/50 |
2 + 2 |
300 |
20/25/30 |
30/35/40/50 |
2 + 2 |
All measurments are in millimeters (mm). |
