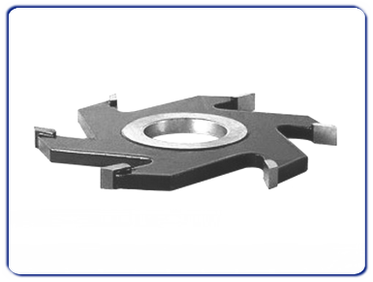

Article 0120 Grooving cutters
Technical specifications:
Plain cutter brazed with sharp straight or angled.
The tool is made from Hm reported or high speed steel.
Hc execution suitable for abrasive, hard, soft and glued woods, MDF, plywood and chipboard.
Hss execution suitable for soft, hard and non-
Moulder, spindle moulder, shaper, tenoner.

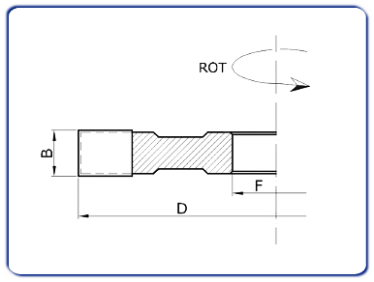

Diameter (D) |
Cutting hight (B) |
Bore (F) |
Cutting edges (Z) |
60 |
4/8/10/12/15/20/25/30 |
30 |
2/3/4 |
80 |
4/8/10/12/15/20/25/30 |
30/35 |
2/3/4 |
100 |
4/8/10/12/15/20/25/30 |
30/35/40 |
2/3/4/6 |
120 |
4/8/10/12/15/20/25/30 |
30/35/40 |
2/3/4/6 |
140 |
4/8/10/12/15/20/25/30 |
30/35/40 |
2/3/4/6 |
160 |
4/8/10/12/15/20/25/30 |
30/35/40 |
2/3/4/6 |
180 |
4/8/10/12/15/20/25/30 |
30/35/40 |
2/3/4/6 |
200 |
4/8/10/12/15/20/25/30 |
30/35/40 |
2/3/4/6 |
250 |
4/8/10/12/15/20/25/30 |
30/35/40 |
2/3/4/6 |
300 |
4/8/10/12/15/20/25/30 |
30/35/40/50 |
2/3/4/6 |
Shavers for moulders |
|||
Diameter (D) |
Cutting hight (B) |
Bore (F) |
Cutting edges (Z) |
120 |
10/12 |
35/40/50 |
6 |
140 |
10/12 |
35/40/50 |
6 |
160 |
10/12 |
35/40/50 |
6 |
All measurments are in millimeters (mm). |
