The calculation of the maximum gulett width of cutter

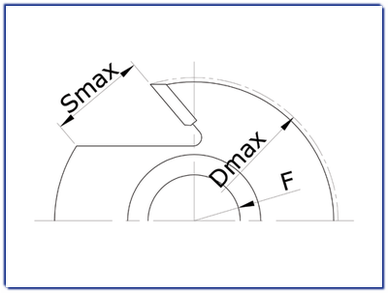

The maximum gulett width for cutting diameters from D = 16 mm to 400 mm shall be measured at maximum cutting circe.
This shall include the regrinding range and shall be selected in accordance with the requirements of the table bellow.

Safety requirements EN-847-1

This European Standard was approved by CEN on 2005-02-21.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the Management Centre or to any CEN member.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland, and the United Kingdom.

European Committee for Standardization

Example:
Determine the maxsimum gulett width by EU standars EN-847-1 for the cutter with diameter 220,00 mm.

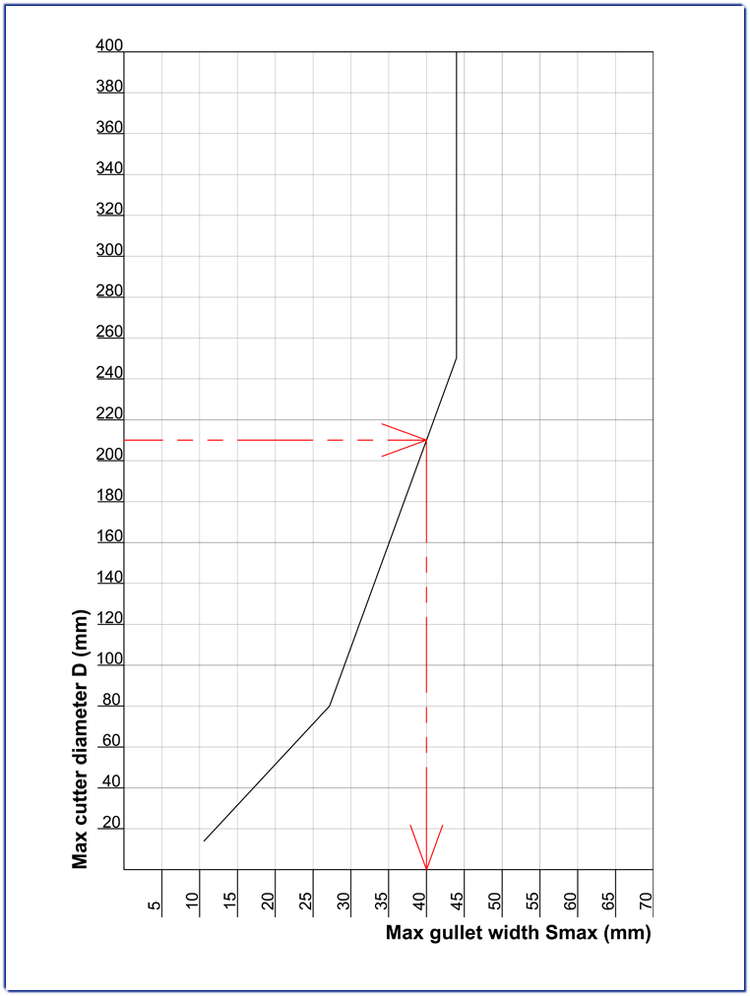

From the point resulting from the vertical left (Max cutter diameter) D = 220,00 mm follow the line up to the point of the diagram . Continue vertically towards the horizontal line (Max gulett width) Smax = 40 mm.
