The calculation of optimal sawblade diameter

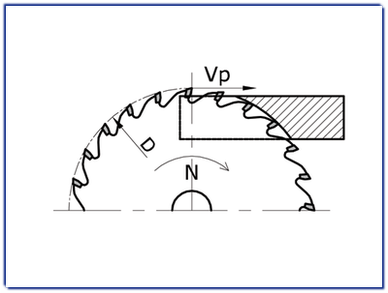

The technical table for the calculation of the optimal diameter of the circular sawblade based on its tip speed and the work material.
To calculate the optimal diameter of the circular sawblade you can send us a request with the data necessary fields.We will answer you without any your commitment, in a short time. Otherwise you can use the table below, following the examples subscribed.
Tip speed Vp (m/s) |
||||||
Softwood |
Hardwood |
Exotic wood |
Chipboard |
Joinery wood |
MDF |
Laminated |
50- |
50- |
50- |
60- |
60- |
30- |
40- |

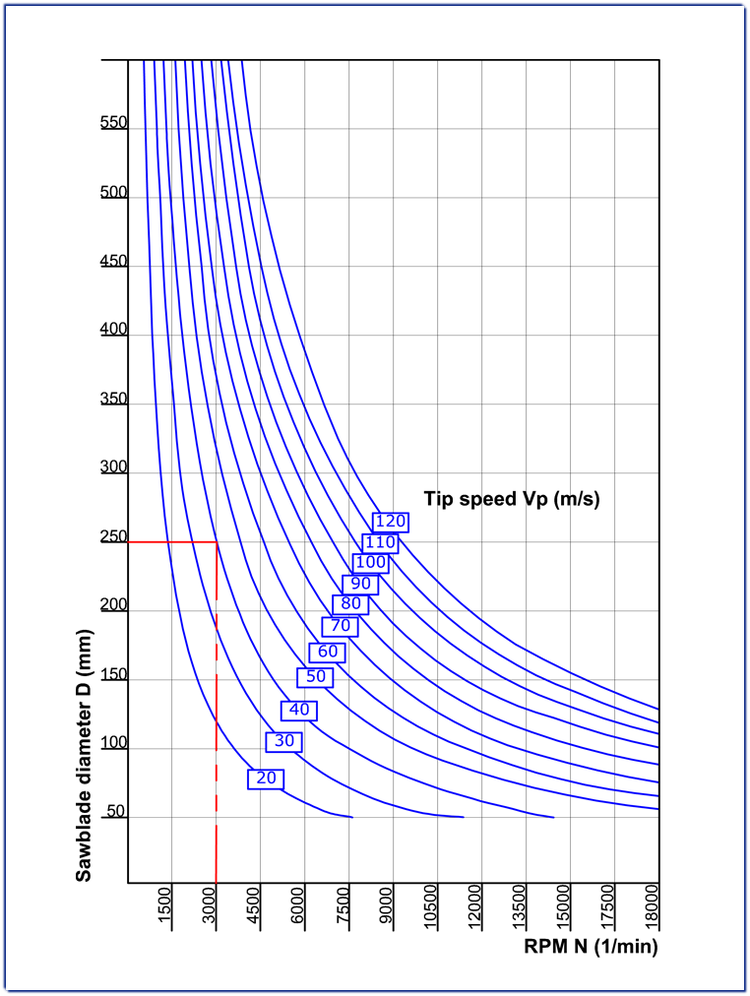

Example:
Determine the optimal diameter of the circular sawblade considering the tip speed for hardwood Vp = 40 m/s and the RPM N = 3,000 1/min.
From the point resulting from the horizontal (RPM) N = 3,000 1/min follow the line to the point of the curve to the correspondingly colorful (tip speed) Vp = 40 m/s and continue horizontally to the left vertical (sawblade diameter) D = 250 mm.
