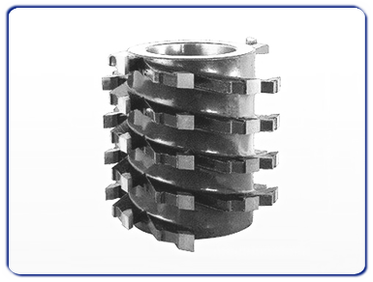

Article 0225 Multicut spiral cutters with cut limiting device
Technical specifications:
Cutter with 8 wings in Hc (brazed tungsten carbide) with chip limiter, positioned on a spiral pattern, with two starting helicies.
The tool allows to work at high speed and deep removal with good surface finish on machines with manual feed .
Suitable for softwood, hardwood and glued wood.
Application:
Spindle moulder.

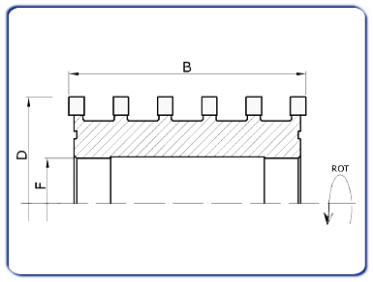

Diameter (D) |
Cutting hight (B) |
Bore (F) |
Cutting edges (Z) |
72 |
40/60/80/120/150 |
30/35 |
8 |
90 |
40/80/100/120/150/160/180 |
30/35/40 |
8 |
100 |
40/80/100/120/150/160/180 |
30/35/40 |
8 |
All measurments are in millimeters (mm). |
