Multicut spiral cutters vith bevelling or radius execution - OMER

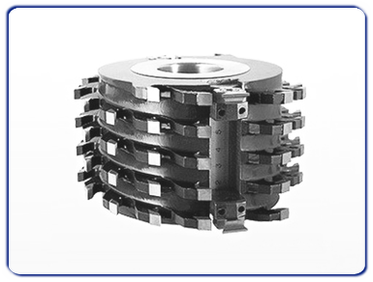

Article 0220 Multicut spiral cutters vith bevelling or radius execution

Technical specifications:

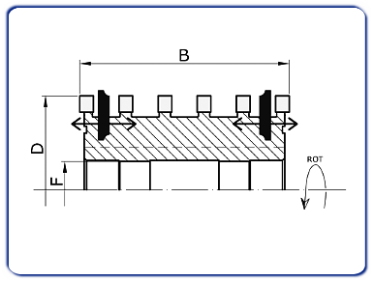

Cutter with 10/14 wings in Hc (brazed tungsten carbide) with 4 plugs which allow to rounding or chamfering at the same planing operation. The cutting edges are positioned on a spiral pattern, with two starting helicies. For the rays from 3 to 5 mm and a 45 ° chamfer, the tool is built with the dowels and boxcutters interchangeable. For the rays from 6 to 10 mm, the tool is built using the plugs and plates brazed. The two systems are not inter-changeable between themselves.
The tool allows to work at high speed and deep wood removal with good surface finishing.
Suitable for softwood, hardwood and glued wood.

Application:
Moulder, spindle moulder, shaper.
