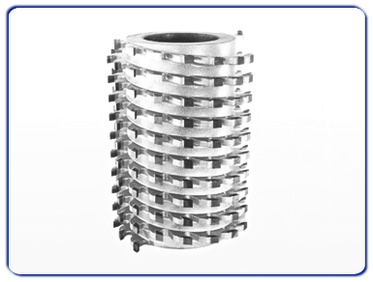

Article 0255 Multicut spiral cutters GOLD with ST
Technical specifications:
Cutter with 16 wings in Hc (brazed tungsten carbide) fractionated positioned on a spiral pattern. Execution with straight tips placed on the two starting helicies.
The tool, thanks to the construction innovative, grants:
■ speeds up to 40 m/min,
■ longer resistance to wear (30% more than the standard multicut spiral cutters),
■ better removal of the material,
■ easier chip ejection.
■ allows to machining and with an excellent finish.
Suitable for softwood, hardwood and glued wood.
Application:
Copyshaping.

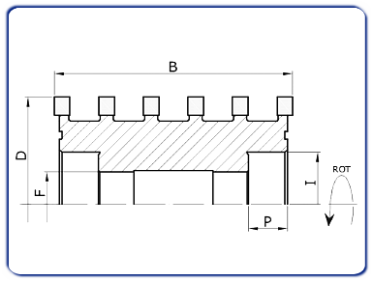

Diameter (D) |
Cutting hight (B) |
Bore (F) |
Cutting edges (Z) |
100 |
60/80/110/120/170/180 |
30/35 |
16 |
120 |
60/80/110/120/170/180 |
30/35/40 |
16 |
140 |
60/80/110/120/170/180 |
30/35/40/50 |
16 |
All measurments are in millimeters (mm). |
