PRODUCTS > CARVING TOOLS

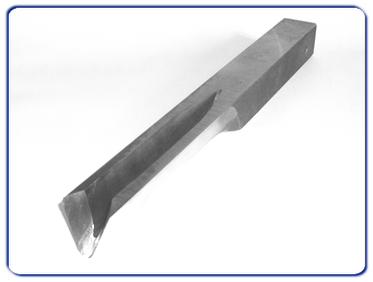

Article 0660 Plates for copying lathe
Technical specifications:
Special high resistant steel execution.
Suitable for lathe working on soft and hard wood.
Application:
Lathe machine.

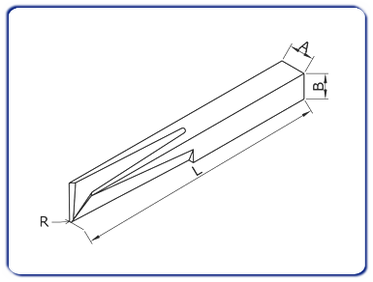

Width (A) |
Height (B) |
Lenght (L) |
Radius (R) |
Cutting edges (Z) |
15 |
15 |
150 |
2 |
1 |
20 |
20 |
200 |
2,5/5 |
1 |
20 |
25 |
210 |
2,5/5 |
1 |
25 |
25 |
210 |
2,5/6 |
1 |
25 |
30 |
220 |
2,5/5 |
1 |
30 |
30 |
220 |
7,5 |
1 |
30 |
30 |
220 |
10 |
1 |
30 |
30 |
220 |
12,5 |
1 |
All measurments are in millimeters (mm). |
