Article 0600 Carving bits flat bottom z1
Technical specifications:

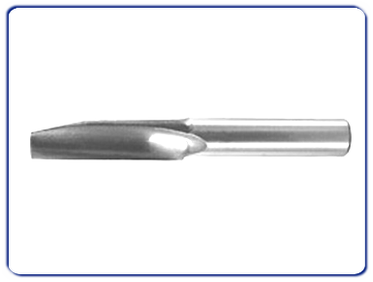

HS (HSS) carving bits with one cutting edge.
The right tool for the automated and manual processes.
Suitable for non glued softwood and hardwood.
Application:
Carving machine.

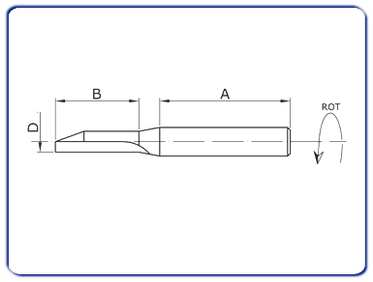

Diameter (D) |
Cutting hight (B) |
Shank (d x A) |
Cutting edges (Z) |
Rotation (R) |
2 |
10 |
8 x 35 |
1 |
left / right |
3 |
10 |
8 x 35 |
1 |
left / right |
4 |
14 |
8 x 35 |
1 |
left / right |
5 |
20 |
8 x 35 |
1 |
left / right |
6 |
22 |
8 x 35 |
1 |
left / right |
8 |
29 |
8 x 35 |
1 |
left / right |
2 |
10 |
11 x 50 |
1 |
left / right |
3 |
15 |
11 x 50 |
1 |
left / right |
4 |
20 |
11 x 50 |
1 |
left / right |
5 |
24 |
11 x 50 |
1 |
left / right |
6 |
26 |
11 x 50 |
1 |
left / right |
8 |
34 |
11 x 50 |
1 |
left / right |
10 |
34 |
11 x 50 |
1 |
left / right |
12 |
38 |
11 x 50 |
1 |
left / right |
14 |
38 |
11 x 50 |
1 |
left / right |
16 |
40 |
11 x 50 |
1 |
left / right |
18 |
40 |
11 x 50 |
1 |
left / right |
20 |
40 |
11 x 50 |
1 |
left / right |
All measurments are in millimeters (mm). |
