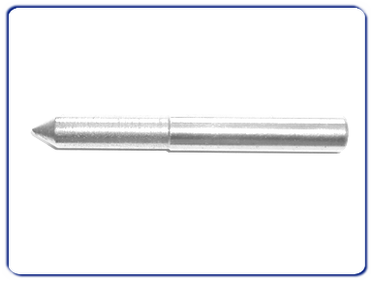

Article 0647 Arrow bottom fingers
Technical specifications:
HS (HSS) copying element on carving machine.
Copier serves as a guide to the bits with the arrow bottom.
Application:
Carving machine.

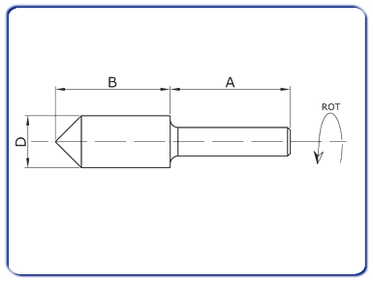

Diameter (D) |
Cutting hight (B) |
Shank (d x A) |
2 |
40 |
11 x 50 |
3 |
40 |
11 x 50 |
4 |
40 |
11 x 50 |
5 |
40 |
11 x 50 |
6 |
40 |
11 x 50 |
7 |
40 |
11 x 50 |
8 |
40 |
11 x 50 |
9 |
40 |
11 x 50 |
10 |
40 |
11 x 50 |
11 |
40 |
11 x 50 |
12 |
40 |
11 x 50 |
13 |
40 |
11 x 50 |
14 |
40 |
11 x 50 |
15 |
40 |
11 x 50 |
16 |
40 |
11 x 50 |
17 |
40 |
11 x 50 |
18 |
40 |
11 x 50 |
19 |
40 |
11 x 50 |
20 |
40 |
11 x 50 |
21 |
40 |
11 x 50 |
22 |
40 |
11 x 50 |
23 |
40 |
11 x 50 |
24 |
40 |
11 x 50 |
All measurments are in millimeters (mm). |
