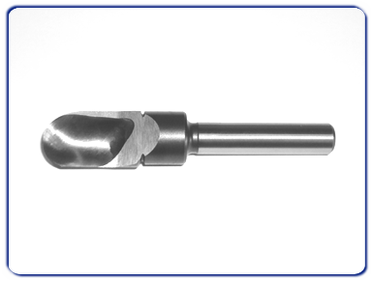

Article 0625 Carving bits spoon shaped bottom
Technical specifications:
HS (HSS) carving bits with one cutting edge.
The right tool for the automated and manual processes.
Suitable for non glued softwood.
Application:
Carving machine.

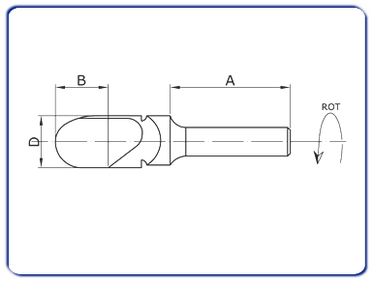

Diameter (D) |
Cutting hight (B) |
Shank (d x A) |
Cutting edges (Z) |
Rotation (R) |
8 |
30 |
11 x 50 |
1 |
left / right |
10 |
30 |
11 x 50 |
1 |
left / right |
12 |
30 |
11 x 50 |
1 |
left / right |
14 |
30 |
11 x 50 |
1 |
left / right |
16 |
30 |
11 x 50 |
1 |
left / right |
18 |
30 |
11 x 50 |
1 |
left / right |
20 |
30 |
11 x 50 |
1 |
left / right |
All measurments are in millimeters (mm). |
