PRODUCTS > ACCESSORIES

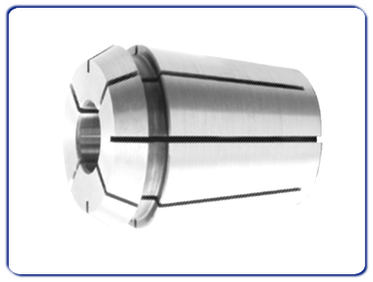

Article 1250 High precision collet
Technical specifications:
Collet parts for different chucks.
Suitable for router bits and tools with cylindrical shank.
Made of hardened steel at temperatures around 450 ° C.
Precision refaced surfaces externally and internally.
Application:
CNC machine.

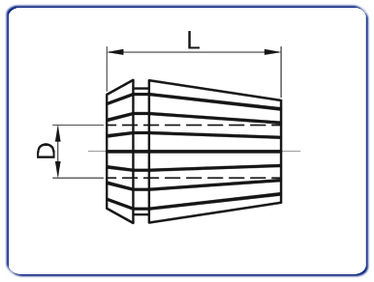

Type |
Diameter (D) |
ER 25 |
3/4/5/6/7/8/10/12/13/14/16 |
ER 32 |
3/4/5/6/7/8/10/12/13/14/16/18/19/20 |
ER 40 |
3/4/5/6/7/8/10/12/13/14/16/18/19/20/25 |
ETS 32 |
6/8/10/12/14/16/18/20 |
ETS 40 |
6/8/10/12/14/16/18/20/25 |
DIN 6388 |
6/8/10/12/13/14/16/18/20/25 |
All measurments are in millimeters (mm). |
