Article 1260 Drill bit adaptors -
Technical specifications:

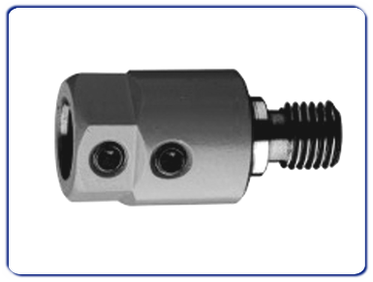

Drill bit adaptors for boring machine.
Suitable for drill bits with cylindrical shank with shelf.
The adaptor garanty precision and reliability, perfect centering, safety and ease of assembly, tanks to its construction in special steel with high resistance. The tool has totally refaced surfaces for maximum precision on all surfaces to be joined.
Application:
Boring machine.
Machine |
Rotation |
Drill bore (F) |

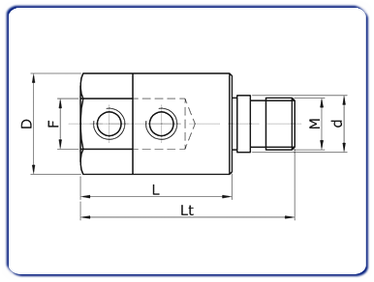

Dimensions |
||||
| D |
L |
Lt |
M |
d |
|||
Nottmayer |
left / right |
8/10 |
16/19,50 |
25 |
40 |
M8 |
- |
Ayen/Holzma/Mayer |
left / right |
8/10 |
16/19,50 |
25 |
40 |
M10 |
- |
Biesse/Masterwood/Vitap |
left / right |
8/10 |
16/19,50 |
25 |
41 |
M10 |
11x4 |
Masterwood/Morbidelli/Nottmayer |
left / right |
8/10 |
16/19,50 |
25 |
40 |
M8 |
9x4 |
All measurments are in millimeters (mm). |
