PRODUCTS > ACCESSORIES

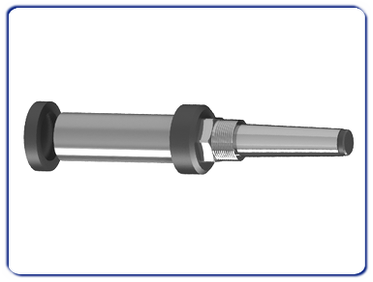

Article 1210 Chuck with MK shank carrying drill
Technical specifications:
High precision chucks for the old generation pantographs.
Suitable for profiled and rebate cutters.
Application:
Manual or overhead CNC machine.

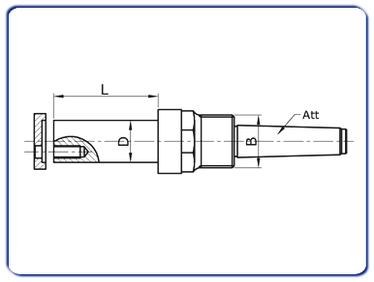

Diameter (D) |
Lenght (L) |
Shank ( d x L ) |
Thread (B) |
Rotation |
30/35/40 |
93 |
MK2 |
F20 x 14 fil. x 1' |
left / right |
30/35/40 |
93 |
MK2 |
F30 x 1,50 |
left / right |
30/35/40 |
93 |
MK3 |
F30 x 1,50 |
left / right |
30/35/40 |
103/123/203 |
MK3 |
F30 x 1,50 |
left / right |
All measurments are in millimeters (mm). |
