Windows tools - Soft line A4/12 alu2 - OMER

Article 0935 Windows tools - Soft line A4/12 alu2

Technical specifications:
Programmed tools with HC (integral tungsten carbide) inserts or diamond inserts, 2 mm thikcness, replaceable and sharpenable. The bodies are made of great resistance steel and are programmed between them both in height and in diameter, giving the possibility to set the machine only once time.

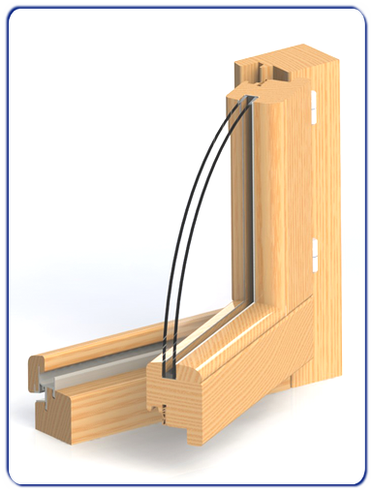

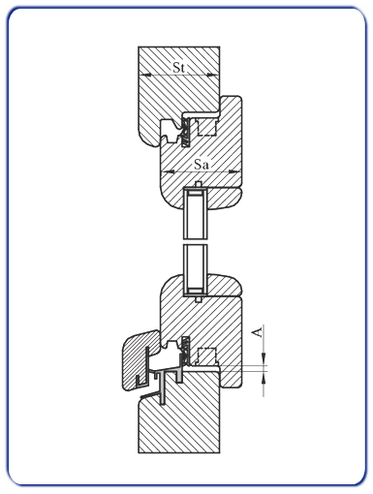

Possibility of realization up to three gaskets, increase of the wing thickness unchanged the frame thickness and on the contrary, aluminium drip, thermic and acoustic gasket on frames or wings, possibility of folding wing, strenghthening tenon in wing tenoning, condensate relase and aeration groove, option metal-fitting hideway, make one window frame perfect and versatile.

Application:
Spindle moulder, window frame machine center.
