Article 0915 Windows tools -
Technical specifications:
Programmed tools with HC (integral tungsten carbide) inserts or diamond inserts, 2 mm thikcness, replaceable and sharpenable. The bodies are made of great resistance steel and are programmed between them both in height and in diameter, giving the possibility to set the machine only once time.
Possibility of realization up to three gaskets, increase of the wing thickness unchanged the frame thickness and on the contrary, standard DIN 68121 drip, possibility of folding wing, thermic and acoustic gasket on frames or wings, strenghthening tenon in wing tenoning, condensate relase and aeration groove, option metal-
Spindle moulder, window frame machine center.

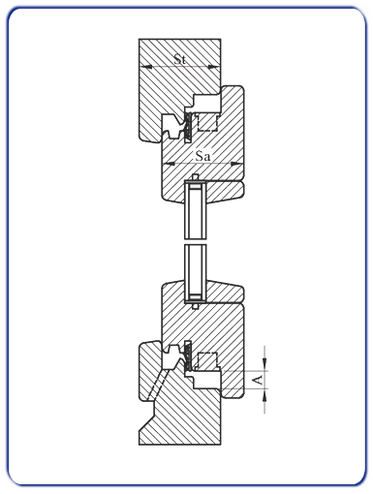

Wing thickness (Sa) |
Frame thickness (St) |
Open (A) |
|
56/60/64/68 |
56 |
12 |
|
Group |
Gruop description |
||
1 |
Frame jamb tenoning |
||
2 |
Frame cross pieces tenoning |
||
3 |
Wing jamb tenoning |
||
4 |
Wing cross pieces tenoning |
||
5 |
Inside wing profiling |
||
6 |
Crosspieces and wing jamb profiling |
||
7 |
Glass bead removal |
||
8 |
Wing squaring |
||
9 |
Hardware groove |
||
10 |
Squaring of central left wing jamb |
||
Group |
Windor- |
||
11 |
Profiling of added crosspieces |
||
12 |
Tenonig of lower frame jamb |
||
13 |
Window door end grain profiling |
||
Group |
Central additional part variant |
||
14 |
Profiling of central additional jamb part |
||
15 |
Tenoning of additional jamb- |
||
All measurments are in millimeters (mm). |
