Article 1112 Set of simple chisels
Technical specifications:

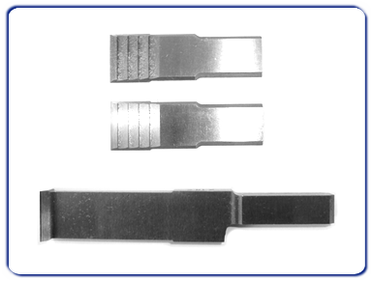

The chisel is a cutting tool assembled on an eccentric head and produces mortises in the wood trough an oscillating motion. The tool's body and the cutting blade are made of an HSS steel plate. The chisel work together with two side cutters to perform the mortises of extreme precision.
Suitable for solidwood.
Application:
Mortiser.

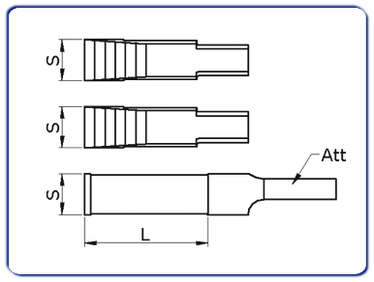

Thickness (S) |
Mortise width (B) |
Depth (P) |
Cutting edges (Z) |
Shank (Att) |
2,20/2,50 |
26÷40 |
20 |
2+1+1 |
10x10x35 |
3/4/5/6/7 |
26÷40/26÷70/35÷80 |
20/40/60 |
2+1+1 |
10x10x35 |
8/9/10 |
26÷40/26÷70/35÷80/45÷80 |
20/40/60/85 |
2+1+1 |
10x10x35 |
11/12 |
26÷40/26÷70/35÷80/45÷80 |
20/40/60/85 |
2+1+1 |
10x10x35 |
13/14/15 |
26÷40/26÷70/35÷80/45÷80 |
20/40/60/85 |
2+1+1 |
10x10x35 |
16/18 |
26÷40/26÷70/35÷80/45÷80 |
20/40/60/85 |
2+1+1 |
10x10x35 |
19/20 |
26÷70/45÷80 |
40/85 |
2+1+1 |
10x10x35 |
22 |
26÷70/45÷80 |
40/85 |
2+1+1 |
10x10x35 |
24 |
26÷70/45÷80 |
40/85 |
2+1+1 |
10x10x35 |
26 |
26÷70/45÷80 |
40/85 |
2+1+1 |
10x10x35 |
28/29 |
26÷70/45÷80 |
40/85 |
2+1+1 |
10x10x35 |
All measurments are in millimeters (mm). |
